mimas::gnuplot Class Reference

#include <gnuplot.h>

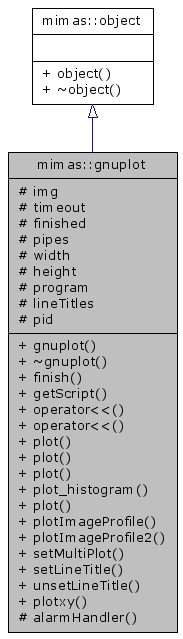

Inheritance diagram for mimas::gnuplot:

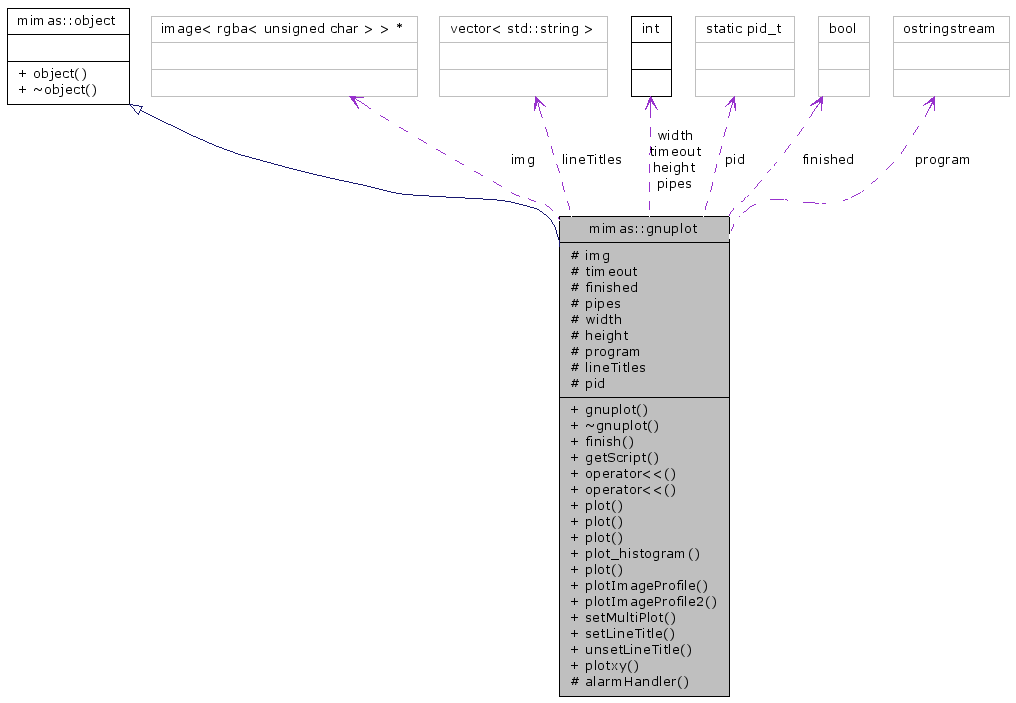

[legend]Collaboration diagram for mimas::gnuplot:


Public Member Functions
	gnuplot (image< rgba< unsigned char > > &_img, int _width, int _height, int _timeout=3) throw (mimasexception)
	Constructor.
virtual	~gnuplot (void)
	Destructor.
void	finish (void) throw (mimasexception)
	Render plot to image.
std::string	getScript (void) const
	Get current script.
template<typename T>
std::ostream &	operator<< (const T &t)
	Append something to the gnuplot script.
std::ostream &	operator<< (std::ostream &(*__pf)(std::ostream &))
	Append io-manipulator to the gnuplot script.
template<typename T>
void	plot (const boost::numeric::ublas::vector< T > &vec)
	Plot vector - like in Octave.
template<typename T>
void	plot (const boost::numeric::ublas::matrix< T > &mat)
	Plot matrix - like in Octave.
template<typename T>
void	plot (const boost::numeric::ublas::matrix< T > &mat, int xcol, int ycol, const std::string &style="points", int type=1, int size=1) throw (mimasexception)
	Plotting of xcol against ycol.
template<typename T>
void	plot_histogram (const std::vector< T > &vec, std::string title="")
	Histogram ploting of a vector.
template<typename T>
void	plot (const std::vector< T > &vector, std::string title="")
	To visualize the content of a std::vector.
template<typename T>
void	plotImageProfile (const image< T > &im)
	plot an image<int> profile
template<typename T>
void	plotImageProfile2 (const image< T > &im, std::string title="")
	plot an image<int> profile
void	setMultiPlot (bool multiplot)
	set or unset multiplot
void	setLineTitle (const char *title,...)
	Set line titles for use with plotxy.
void	unsetLineTitle (void)
	Unset line titles.
template<typename T>
void	plotxy (const boost::numeric::ublas::matrix< T > &mat, int xcol, int ycol,...) throw (mimasexception)
	plotting of x and single or multple y column pairs.
Static Protected Member Functions
static void	alarmHandler (int signal)
Protected Attributes
image< rgba< unsigned char > > *	img
	The plot will be rendered to this image.
int	timeout
	Kill 'gnuplot' after so many seconds.
bool	finished
	Boolean indicating, wether finish was called already.
int	pipes [2]
	Pipes to communicate with 'gnuplot'.
int	width
int	height
std::ostringstream	program
	Stream to temporarily store gnuplot script.
std::vector< std::string >	lineTitles
	List of titles used by plotxy.
Static Protected Attributes
static pid_t	pid
	Process-ID of 'gnuplot'.

Detailed Description

Definition at line 17 of file gnuplot.h.

Constructor & Destructor Documentation

mimas::gnuplot::gnuplot	(	image< rgba< unsigned char > > &	_img,
		int	_width,
		int	_height,
		int	_timeout = `3`
	)			throw (mimasexception)

Constructor.

virtual mimas::gnuplot::~gnuplot ( void ) [virtual]

Destructor.

Will call finish(), if it was not called already.

Member Function Documentation

void mimas::gnuplot::finish ( void ) throw (mimasexception)

Render plot to image.

std::string mimas::gnuplot::getScript ( void ) const [inline]

Get current script.

You can request the script at it's current state (without the terminal-command).

Definition at line 31 of file gnuplot.h.

References program.

template<typename T>

std::ostream& mimas::gnuplot::operator<< ( const T & t ) [inline]

Append something to the gnuplot script.

Definition at line 34 of file gnuplot.h.

References program.

std::ostream& mimas::gnuplot::operator<< ( std::ostream &(*)(std::ostream &) __pf ) [inline]

Append io-manipulator to the gnuplot script.

Definition at line 36 of file gnuplot.h.

References program.

template<typename T>

void mimas::gnuplot::plot ( const boost::numeric::ublas::vector< T > & vec )

Plot vector - like in Octave.

Definition at line 153 of file gnuplot.h.

template<typename T>

void mimas::gnuplot::plot ( const boost::numeric::ublas::matrix< T > & mat )

Plot matrix - like in Octave.

Definition at line 163 of file gnuplot.h.

template<typename T>

void mimas::gnuplot::plot	(	const boost::numeric::ublas::matrix< T > &	mat,
		int	xcol,
		int	ycol,
		const std::string &	style = `"points"`,
		int	type = `1`,
		int	size = `1`
	)			throw (mimasexception)

Plotting of xcol against ycol.

Columns are indexed from 0. style is either "line" or "point". type is an integer which specifies the type of line or point (refer to gnuplot package). size is the point or line size. Use setMultiPlot to overlay plots.

Definition at line 179 of file gnuplot.h.
