mimas::pyramid_tool Class Reference

Pyramid tool for creating Gaussian and Laplacian pyramids. More...

#include <pyramid_tool.h>

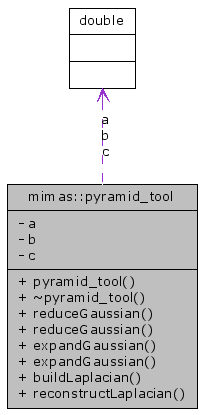

Collaboration diagram for mimas::pyramid_tool:

[legend]List of all members.

Public Member Functions
	pyramid_tool (void)
	constructor
	~pyramid_tool (void)
	destructor
void	reduceGaussian (image< double > &imagein, image< double > &imageout)
void	reduceGaussian (image< double > &imagein, vector< image< double > > &vectimageout, int numlevels)
void	expandGaussian (image< double > &imagein, image< double > &imageout)
void	expandGaussian (image< double > &imagein, vector< image< double > > &vectimageout, int numlevels)
void	buildLaplacian (image< double > &imagein, vector< image< double > > &vectimageout, int numlevels)
void	reconstructLaplacian (vector< image< double > > &vectimagein, image< double > &imageout)

---

Detailed Description

Pyramid tool for creating Gaussian and Laplacian pyramids.

Author:

Bala Amavasai (bala@amavasai.org)

Date:

Mon Jul 15 11:39:38 UTC 2002

Header

/cvs/mimas2/include/pyramid_tool.h,v 1.1.1.1 2005/08/09 15:37:45 engmb Exp

Definition at line 18 of file pyramid_tool.h.

---

Constructor & Destructor Documentation

mimas::pyramid_tool::pyramid_tool

(

void

)

constructor

Definition at line 36 of file pyramid_tool.h.

mimas::pyramid_tool::~pyramid_tool

(

void

)

destructor

Definition at line 43 of file pyramid_tool.h.

---

Member Function Documentation

void mimas::pyramid_tool::reduceGaussian	(	image< double > &	imagein,
		image< double > &	imageout
	)

Definition at line 153 of file pyramid_tool.h.

References mimas::const_image_ref< T, T * >::getHeight(), mimas::image_ref< T >::getPixel(), mimas::const_image_ref< T, T * >::getWidth(), mimas::image< T >::init(), and mimas::image_ref< T >::pixel().

Referenced by buildLaplacian(), and reduceGaussian().

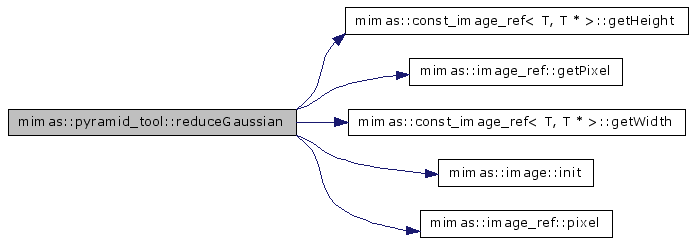

Here is the call graph for this function:

void mimas::pyramid_tool::reduceGaussian	(	image< double > &	imagein,
		vector< image< double > > &	vectimageout,
		int	numlevels
	)

Definition at line 101 of file pyramid_tool.h.

References mimas::image< T >::clear(), and reduceGaussian().

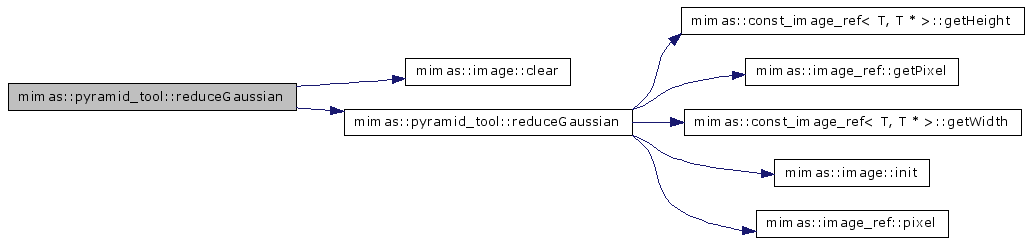

Here is the call graph for this function:

void mimas::pyramid_tool::expandGaussian	(	image< double > &	imagein,
		image< double > &	imageout
	)

Definition at line 184 of file pyramid_tool.h.

References mimas::const_image_ref< T, T * >::getHeight(), mimas::image_ref< T >::getPixel(), mimas::const_image_ref< T, T * >::getWidth(), mimas::image< T >::init(), and mimas::image_ref< T >::pixel().

Referenced by buildLaplacian(), expandGaussian(), and reconstructLaplacian().

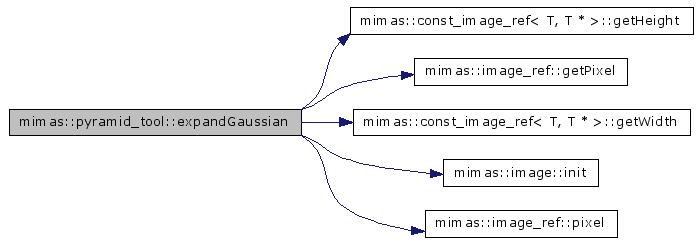

Here is the call graph for this function:

void mimas::pyramid_tool::expandGaussian	(	image< double > &	imagein,
		vector< image< double > > &	vectimageout,
		int	numlevels
	)

Definition at line 127 of file pyramid_tool.h.

References mimas::image< T >::clear(), and expandGaussian().

Here is the call graph for this function:

void mimas::pyramid_tool::buildLaplacian	(	image< double > &	imagein,
		vector< image< double > > &	vectimageout,
		int	numlevels
	)

Definition at line 48 of file pyramid_tool.h.

References mimas::image< T >::clear(), expandGaussian(), mimas::const_image_ref< T, T * >::getHeight(), mimas::const_image_ref< T, T * >::getWidth(), mimas::image_ref< T >::pixel(), and reduceGaussian().

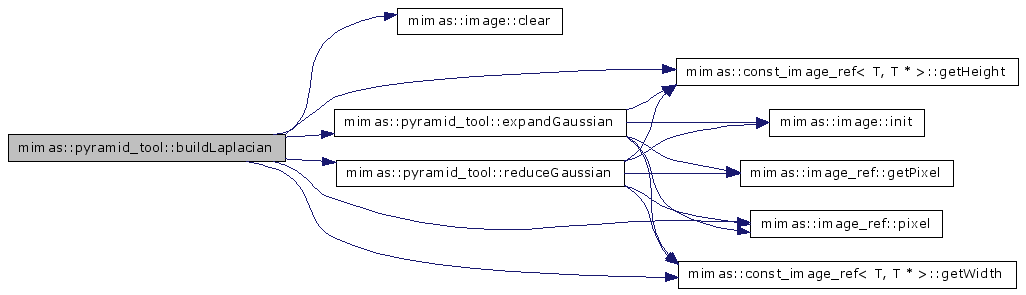

Here is the call graph for this function:

void mimas::pyramid_tool::reconstructLaplacian	(	vector< image< double > > &	vectimagein,
		image< double > &	imageout
	)

Definition at line 77 of file pyramid_tool.h.

References expandGaussian(), mimas::const_image_ref< T, T * >::getHeight(), mimas::const_image_ref< T, T * >::getWidth(), mimas::image< T >::init(), and mimas::image_ref< T >::pixel().

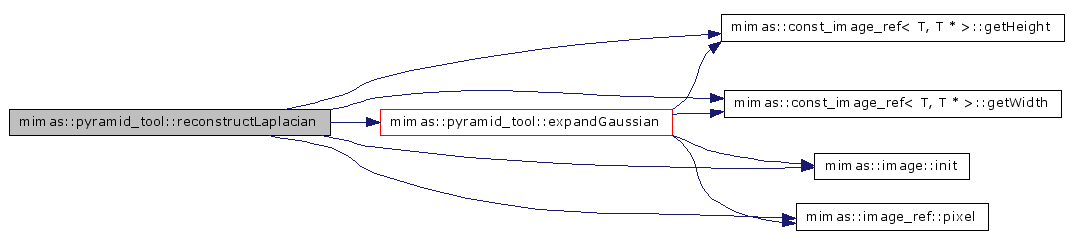

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• pyramid_tool.h

---
