mimas::x11_window Class Reference

Class for opening X11 windows. More...

#include <x11_window.h>

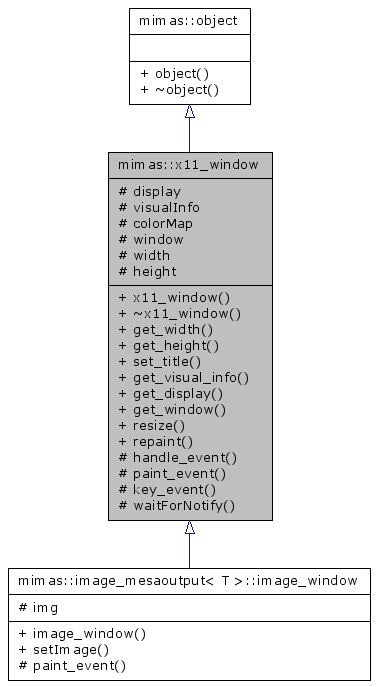

Inheritance diagram for mimas::x11_window:

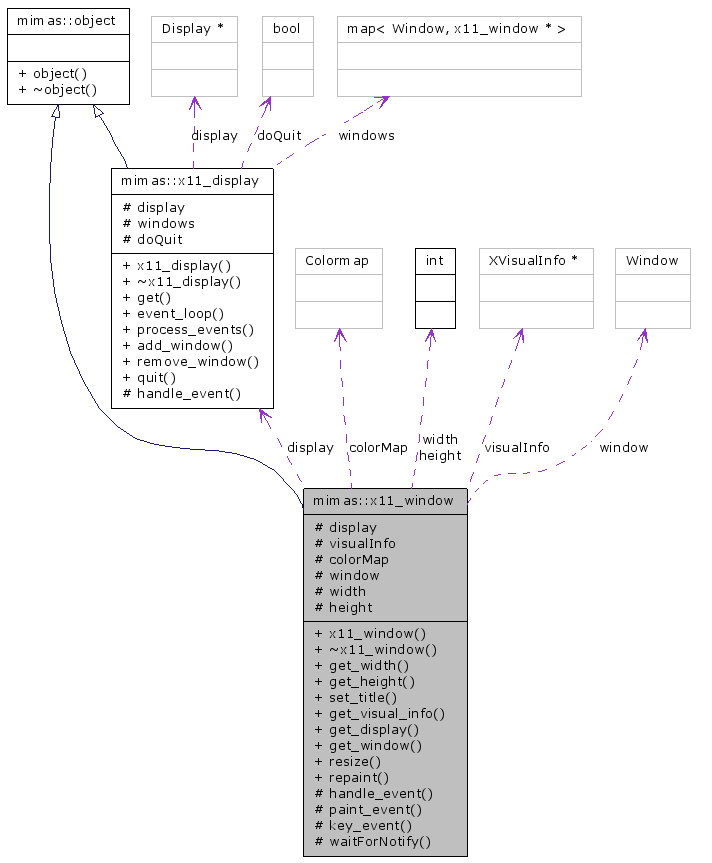

[legend]Collaboration diagram for mimas::x11_window:

[legend]List of all members.

Public Member Functions
	x11_window (x11_display *_display, int _width, int _height, bool depthBuffer=false)
virtual	~x11_window (void)
int	get_width (void) const
int	get_height (void) const
void	set_title (const char *_title)
XVisualInfo *	get_visual_info (void) const
x11_display *	get_display (void)
Window	get_window (void)
void	resize (int _width, int _height) throw (mimasexception)
	Resize the window.
void	repaint (void)
Protected Member Functions
virtual void	handle_event (XEvent &event) throw (mimasexception)
	Handle X11 events.
virtual void	paint_event (void)=0 throw (mimasexception)
virtual void	key_event (XKeyEvent &xkey) throw (mimasexception)
Static Protected Member Functions
static Bool	waitForNotify (Display *, XEvent *e, char *arg)
Protected Attributes
x11_display *	display
XVisualInfo *	visualInfo
Colormap	colorMap
	Colormap of X11-visual.
Window	window
	X11 window.
int	width
int	height
Friends
class	x11_display

---

Detailed Description

Class for opening X11 windows.

Author:

Jan Wedekind (jan at wedesoft.de)

Date:

Fri Apr 29 23:10:01 UTC 2005

Definition at line 24 of file x11_window.h.

---

Constructor & Destructor Documentation

mimas::x11_window::x11_window	(	x11_display *	_display,
		int	_width,
		int	_height,
		bool	depthBuffer = false
	)

virtual mimas::x11_window::~x11_window

(

void

)

[virtual]

---

Member Function Documentation

int mimas::x11_window::get_width

(

void

)

const [inline]

Definition at line 34 of file x11_window.h.

References width.

int mimas::x11_window::get_height

(

void

)

const [inline]

Definition at line 36 of file x11_window.h.

References height.

void mimas::x11_window::set_title

(

const char *

_title

)

XVisualInfo* mimas::x11_window::get_visual_info

(

void

)

const [inline]

Definition at line 40 of file x11_window.h.

References visualInfo.

x11_display* mimas::x11_window::get_display

(

void

)

[inline]

Definition at line 42 of file x11_window.h.

References display.

Window mimas::x11_window::get_window

(

void

)

[inline]

Definition at line 44 of file x11_window.h.

References window.

void mimas::x11_window::resize	(	int	_width,
		int	_height
	)			throw (mimasexception)

Resize the window.

void mimas::x11_window::repaint

(

void

)

virtual void mimas::x11_window::handle_event

(

XEvent &

event

)

throw (mimasexception) [protected, virtual]

Handle X11 events.

The default-implementation just filters for exposure events and forwards them to paintEvent.

virtual void mimas::x11_window::paint_event

(

void

)

throw (mimasexception) [protected, pure virtual]

Implemented in mimas::image_mesaoutput< T >::image_window.

virtual void mimas::x11_window::key_event

(

XKeyEvent &

xkey

)

throw (mimasexception) [protected, virtual]

static Bool mimas::x11_window::waitForNotify	(	Display *	,
		XEvent *	e,
		char *	arg
	)			[static, protected]

---

Friends And Related Function Documentation

friend class x11_display [friend]

Definition at line 26 of file x11_window.h.

---

Member Data Documentation

x11_display* mimas::x11_window::display [protected]

Definition at line 61 of file x11_window.h.

Referenced by get_display().

XVisualInfo* mimas::x11_window::visualInfo [protected]

Definition at line 63 of file x11_window.h.

Referenced by get_visual_info().

Colormap mimas::x11_window::colorMap [protected]

Colormap of X11-visual.

Definition at line 65 of file x11_window.h.

Window mimas::x11_window::window [protected]

X11 window.

Definition at line 67 of file x11_window.h.

Referenced by get_window().

int mimas::x11_window::width [protected]

Definition at line 69 of file x11_window.h.

Referenced by get_width().

int mimas::x11_window::height [protected]

Definition at line 71 of file x11_window.h.

Referenced by get_height().

---

The documentation for this class was generated from the following file:

• x11_window.h

---
