mimas::xml_document Class Reference
[XML parser]

Class for parsing XML documents. More...

#include <xml_document.h>

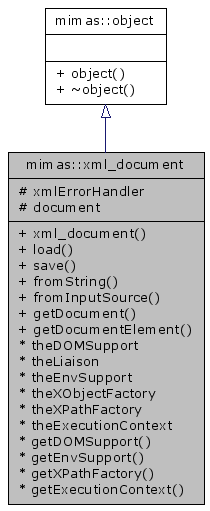

Inheritance diagram for mimas::xml_document:

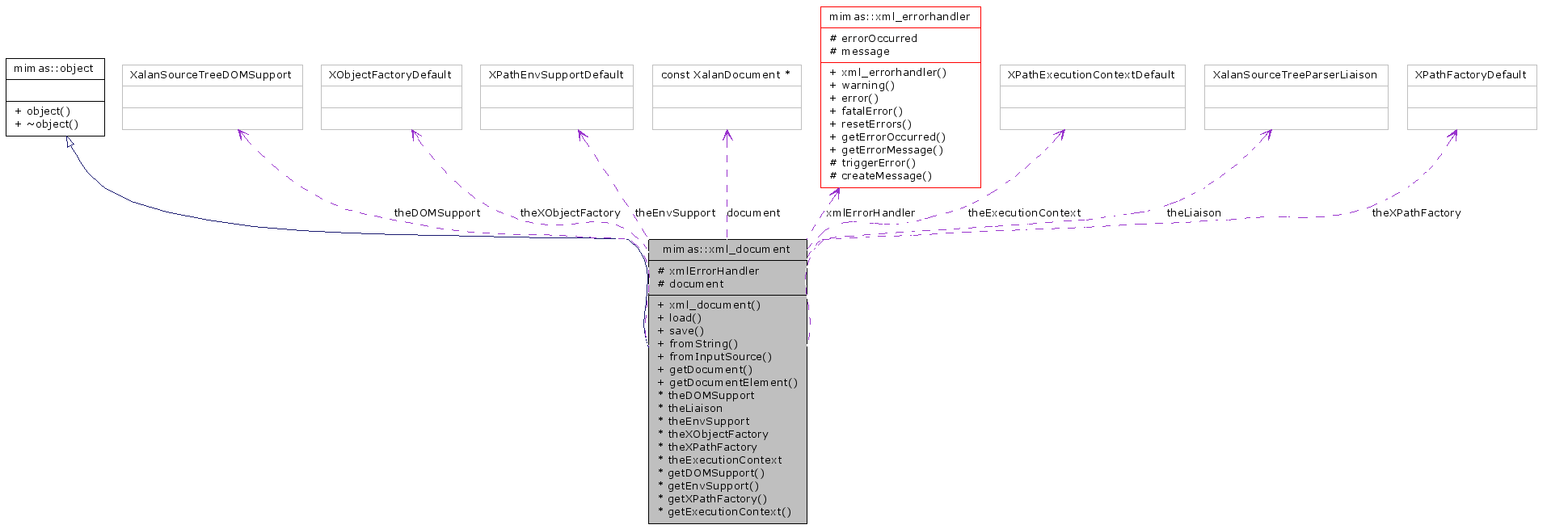

[legend]Collaboration diagram for mimas::xml_document:

[legend]List of all members.

Public Member Functions
	xml_document (const std::string &schemaURI)
	Initialise xml-parser.
void	load (const char *fileName) throw (mimasexception)
	Load XML-file.
void	save (const char *fileName) throw (mimasexception)
	Save XML-file.
void	fromString (const std::string &string) throw (mimasexception)
	Read XML-document from string.
void	fromInputSource (InputSource &inputSource) throw (mimasexception)
	Read XML-document from Xerces-input-source.
const XalanDocument *	getDocument (void) const
	Get pointer to XML-DOM.
xml_reference< XalanElement >	getDocumentElement (void)
	Get root-element of XML-DOM.
Protected Attributes
xml_errorhandler	xmlErrorHandler
	Error handler for catching parse errors.
const XalanDocument *	document
	The XML DOM.

---

Detailed Description

Class for parsing XML documents.

Don't forget to add the following initialization code to your main application, before using this class:

    XMLPlatformUtils::Initialize();
    XPathInit oTheXPathInit;


After using this class, execute the following code:

    XMLPlatformUtils::Terminate();


See Apache Xerces and Xalan documentation for more details.

Author:

Jan Wedekind (jan at wedesoft.de)

Date:

Wed Jan 12 13:53:41 UTC 2004

Definition at line 66 of file xml_document.h.

---

Constructor & Destructor Documentation

mimas::xml_document::xml_document

(

const std::string &

schemaURI

)

Initialise xml-parser.

A URI for verification consists of two parts:

• The URI, which is also mentioned in the xmlns-attribute of the XML-document to be used later.
• The location (usually a file-name of a local file.

  Parameters:

  schemaURI

  URI of XSD-file to be used for verifiaction. Specify "" for no verification.

---

Member Function Documentation

void mimas::xml_document::load

(

const char *

fileName

)

throw (mimasexception)

Load XML-file.

Load a XML-file and perform verification, if necessary.

Parameters:

fileName

Name of file to load.

void mimas::xml_document::save

(

const char *

fileName

)

throw (mimasexception)

Save XML-file.

Parameters:

fileName

Name of file to write XML-document to.

void mimas::xml_document::fromString

(

const std::string &

string

)

throw (mimasexception)

Read XML-document from string.

Parameters:

string

String to read XML-document from.

void mimas::xml_document::fromInputSource

(

InputSource &

inputSource

)

throw (mimasexception)

Read XML-document from Xerces-input-source.

Parameters:

inputSource

An object of input-source-type.

const XalanDocument* mimas::xml_document::getDocument

(

void

)

const [inline]

Get pointer to XML-DOM.

Returns:

Pointer to XML-DOM.

Definition at line 92 of file xml_document.h.

References document.

xml_reference< XalanElement > mimas::xml_document::getDocumentElement

(

void

)

[inline]

Get root-element of XML-DOM.

Returns:

Wrapper-object for root-element of XML-DOM.

Definition at line 96 of file xml_document.h.

References document.

XalanSourceTreeDOMSupport* mimas::xml_document::getDOMSupport

(

void

)

[inline]

Definition at line 103 of file xml_document.h.

References theDOMSupport.

XPathEnvSupportDefault* mimas::xml_document::getEnvSupport

(

void

)

[inline]

Definition at line 106 of file xml_document.h.

References theEnvSupport.

XPathFactoryDefault* mimas::xml_document::getXPathFactory

(

void

)

[inline]

Definition at line 113 of file xml_document.h.

XPathExecutionContextDefault* mimas::xml_document::getExecutionContext

(

void

)

[inline]

Definition at line 115 of file xml_document.h.

References theExecutionContext.

XalanSourceTreeDOMSupport* mimas::xml_document::getDOMSupport

(

void

)

[inline]

Definition at line 103 of file xml_document.h.

References theDOMSupport.

XPathEnvSupportDefault* mimas::xml_document::getEnvSupport

(

void

)

[inline]

Definition at line 106 of file xml_document.h.

References theEnvSupport.

XPathFactoryDefault* mimas::xml_document::getXPathFactory

(

void

)

[inline]

Definition at line 113 of file xml_document.h.

XPathExecutionContextDefault* mimas::xml_document::getExecutionContext

(

void

)

[inline]

Definition at line 115 of file xml_document.h.

References theExecutionContext.

---

Member Data Documentation

XalanSourceTreeDOMSupport mimas::xml_document::theDOMSupport [protected]

Definition at line 123 of file xml_document.h.

Referenced by getDOMSupport().

XalanSourceTreeParserLiaison mimas::xml_document::theLiaison [protected]

Definition at line 125 of file xml_document.h.

xml_errorhandler mimas::xml_document::xmlErrorHandler [protected]

Error handler for catching parse errors.

Definition at line 128 of file xml_document.h.

const XalanDocument* mimas::xml_document::document [protected]

The XML DOM.

Definition at line 130 of file xml_document.h.

Referenced by getDocument(), and getDocumentElement().

XPathEnvSupportDefault mimas::xml_document::theEnvSupport [protected]

Definition at line 135 of file xml_document.h.

Referenced by getEnvSupport().

XObjectFactoryDefault mimas::xml_document::theXObjectFactory [protected]

Definition at line 137 of file xml_document.h.

XPathFactoryDefault mimas::xml_document::theXPathFactory [protected]

Definition at line 144 of file xml_document.h.

XPathExecutionContextDefault mimas::xml_document::theExecutionContext [protected]

Definition at line 146 of file xml_document.h.

Referenced by getExecutionContext().

XalanSourceTreeDOMSupport mimas::xml_document::theDOMSupport [protected]

Definition at line 123 of file xml_document.h.

Referenced by getDOMSupport().

XalanSourceTreeParserLiaison mimas::xml_document::theLiaison [protected]

Definition at line 125 of file xml_document.h.

XPathEnvSupportDefault mimas::xml_document::theEnvSupport [protected]

Definition at line 135 of file xml_document.h.

Referenced by getEnvSupport().

XObjectFactoryDefault mimas::xml_document::theXObjectFactory [protected]

Definition at line 137 of file xml_document.h.

XPathFactoryDefault mimas::xml_document::theXPathFactory [protected]

Definition at line 144 of file xml_document.h.

XPathExecutionContextDefault mimas::xml_document::theExecutionContext [protected]

Definition at line 146 of file xml_document.h.

Referenced by getExecutionContext().

---

The documentation for this class was generated from the following file:

• xml_document.h

---
